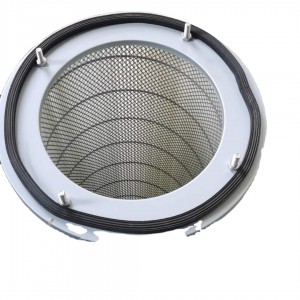

Single cartridge dust collector for woodworking boiler industry

Short Description:

Type:Cartridge dust collector
Efficiency: 99.9%
Warranty period: one year
Min orer : 1Set
Air Volume : 3000-100000 m3/h
Brand Name : SRD
Material: Carbon Steel


Product Detail

Product Tags

Product Description:

PTL series submersible large-scale filter cartridge dust collector
Optimized design, added explosion-proof discharge port, optional discharge method,
The position of the air inlet of the air duct can be flexibly adjusted according to the user’s site.
Air bag and pulse valve, oblique plug-in fast opening and closing filter cover, matching
The safety inspection ladder is extremely convenient for inspection and repair.

photobank

Advantage:

1. Industrial cartridge dust collector is very good to synch the ash in the working process.

2. The dust air inlet shall be equipped with dust plate to prevent the dust from directly impacting the filter cylinder, thus extending the service life of the filter cartridge.

3. Compact structure and small footprint.

4. The filter cylinder is inclined and drawer installed, which can make the cartridge to be removed and replaced more conveniently.

5. For the general dust, the filter cartridge can be used for a long time without replacement, which saves the tedious work of the commonly used bag filter, and saves a lot of maintenance costs.

6. The Industrial cartridge dust collector is a modular combination, and its size is optional.The original combination can be expanded to increase the dust removal unit without much modification to the original equipment.

 photobank

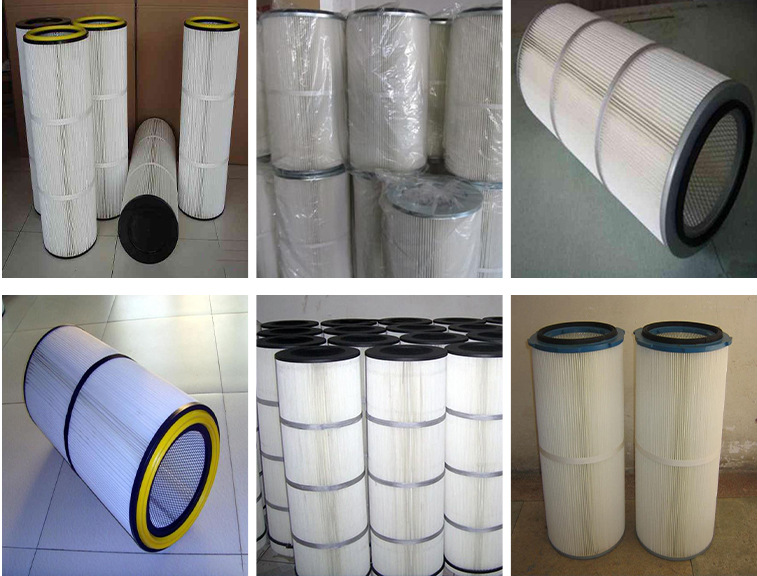

Product specifications

Filtration material: polyester fiber PTFE
Shell material: Galvanized steel plate ; stainless steel ; plated steel sheet;Plastic
OEM&ODM: Provide OEM&ODM
Sample: Provide sample
Customization: Provide customization services
Filtration accuracy: 0.3-180μm
Size: 350*900(MM)

photobank

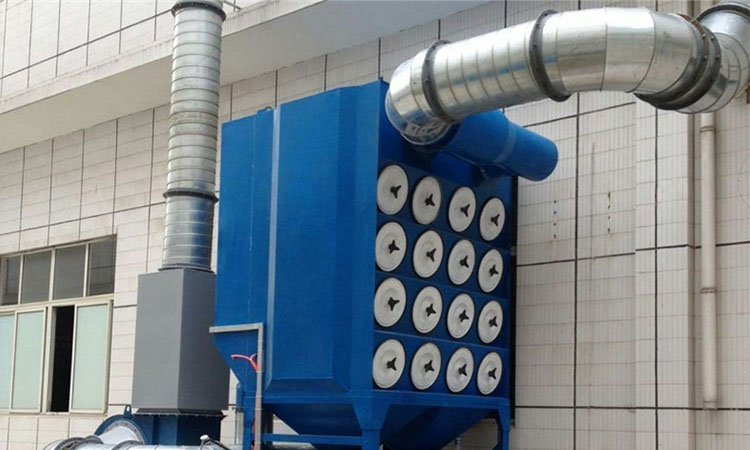

Applications

Suitable for mixing operation, dusting operation, circuit board processing, bagging, metal processing, air supply, sandblasting, casting cutting, mixing, drilling,  crushing, Stone carving work

dust-collector10

Packaging and shipping

xerhfd (13)

xerhfd (6)
