DMF-Y Submerged Electromagnetic Pulse Valve:
DMF- Y electromagnetic pulse valve is a submerged valve (also known as embedded valve), which is directly installed on the gas distribution box and has better flow characteristics. The pressure loss is reduced, which is suitable for the work occassion with lower gas source pressure.
Right Angle solenoid pulse valve is the actuator and key component of pulse jet dust cleaning device, which is mainly divided into three categories: right Angle type, submerged type and straight-through type. The solenoid pulse valve is the compressed air switch of pulse bag dust collector dust cleaning and blowing system.By pulse valve injection controller output signal control, pulse valve is connected with one end of the compressed air package, the other end is connected with the spray pipe, pulse valve back pressure chamber is connected with the control valve, pulse controller controls the control valve and pulse valve open.When the controller has no signal output, the exhaust port of the control valve is closed and the nozzle of the pulse valve is closed.When the controller sends a signal to control the vent is opened, the pulse valve back pressure gas discharge pressure reducing, outdoor produce pressure difference on both sides of diaphragm, diaphragm displacement due to the differential effect, injection pulse valve opens, the compressed air from the air bag, through the pulse valve by spray torch holes out (from the spray torch gas for a wind).Pulse valve life: five years under the condition of standard installation, correct use and reasonable maintenance.
|
Model No. And Specification |
Nominal Diameter |
Number of diaphragm |
Air Outlet |
Weight (kg) |
|
|
Metric System |
British System |
||||
|
DMF-Y－25 |
ø20 |
1″ |
1 |
G1″ |
0.8 |
|
DMF-Y－40S |
ø40 |
1′/2″ |
2 |
G1′/2″ |
1.2 |
|
DMF-Y－50S |
ø50 |
2″ |
2 |
ø60 |
2.5 |
|
DMF-Y－62S |
ø62 |
2′/2″ |
2 |
ø75 |
3.5 |
|
DMF-Y－76S |
ø76 |
3″ |
2 |
ø89 |
3.7 |
|
DMF-Y－90S |
ø90 |
3′/2″ |
2 |
ø102 |
5 |
|
DMF-Y－102S |
ø102 |
4″ |
2 |
ø114 |
5.65 |

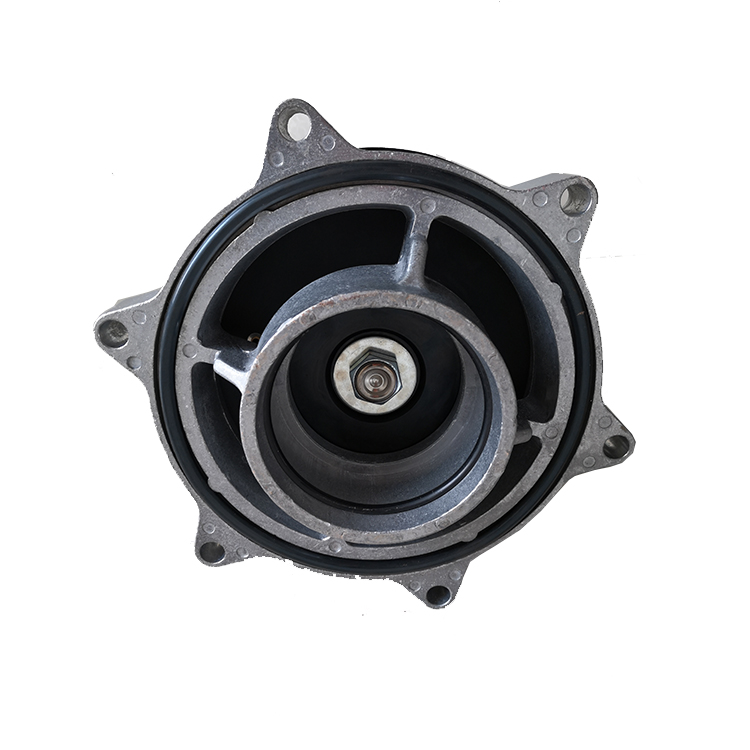

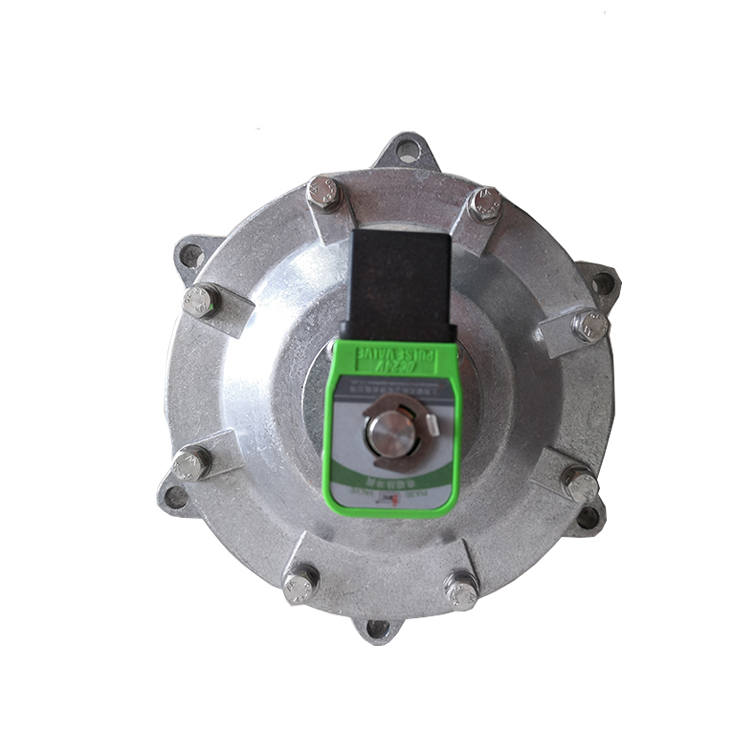

Product detail pictures:
