Working principle：

When the screw shaft rotates, the material can only move forward along the trough bottom of the conveyor under the push of the blade due to the gravity of the material and the friction force between the material and the trough wall, which is just like the translation movement of the nut that cannot be rotated along the rotating screw [3]. The movement of the material in the middle bearing depends on the thrust of the material moving forward behind. Therefore, the material transport in the conveyor, is a kind of sliding movement. In order to make the screw shaft in a more favorable tensile state, the driving device and unloading port are generally placed on the same end of the conveyor, and the feed port is placed near the tail of the other end as far as possible. The rotating spiral blade will be transported by the material, so that the material does not rotate with the screw conveyor blade force is the material’s own weight and the friction resistance of the screw conveyor casing to the material. The blade surface type according to the conveying material has the solid surface type, the belt surface type, the blade surface type and so on. The screw shaft of the screw conveyor in the direction of material movement terminal thrust bearing with material to the axial reaction force of the screw, in the captain is longer, should be added in the middle of the hanging bearing.

Screw conveyor series screw conveyor is divided into horizontal screw conveyor and vertical screw conveyor from the angle of displacement direction of conveying materials. It is mainly used for horizontal conveying and vertical lifting of various loose materials, such as powder, granular and small pieces. It is not suitable for conveying deteriorative, viscous, caking or high temperature, pressure-resistant and relatively high. Special materials with high corrosiveness. Screw conveyor is widely used in various industries, such as building materials, chemical industry, power, metallurgy, coal mine, grain and other industries. For example, coal mine, ash, slag, cement, grain, etc., the material temperature is less than 200 C

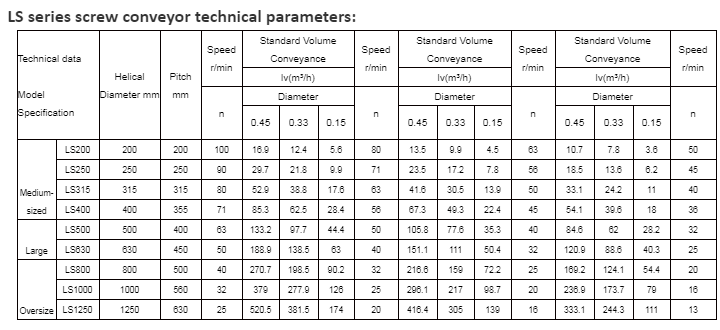

LS series screw conveyor technical parameters:

*Dust Feeder Valve Screw Conveyor For Dust Collector

Product Description

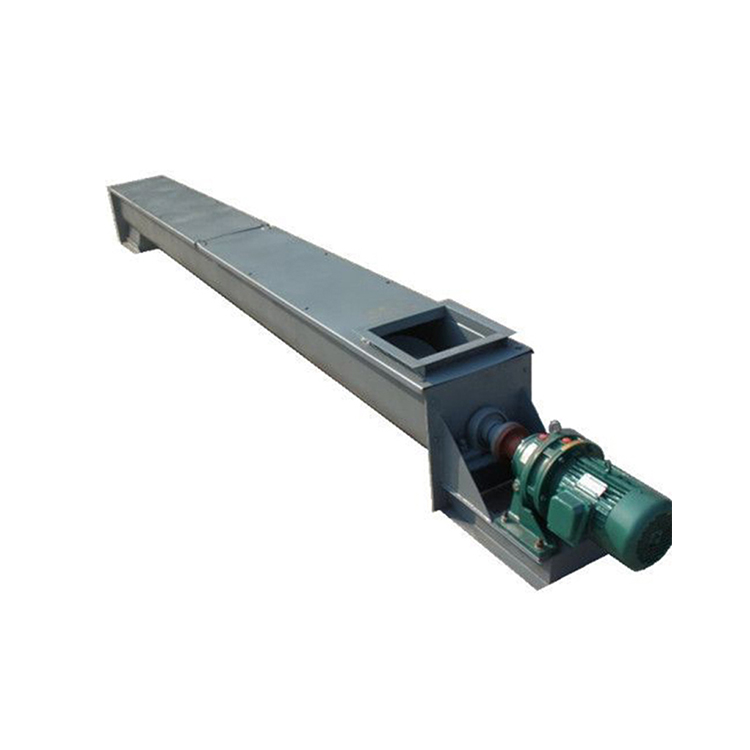

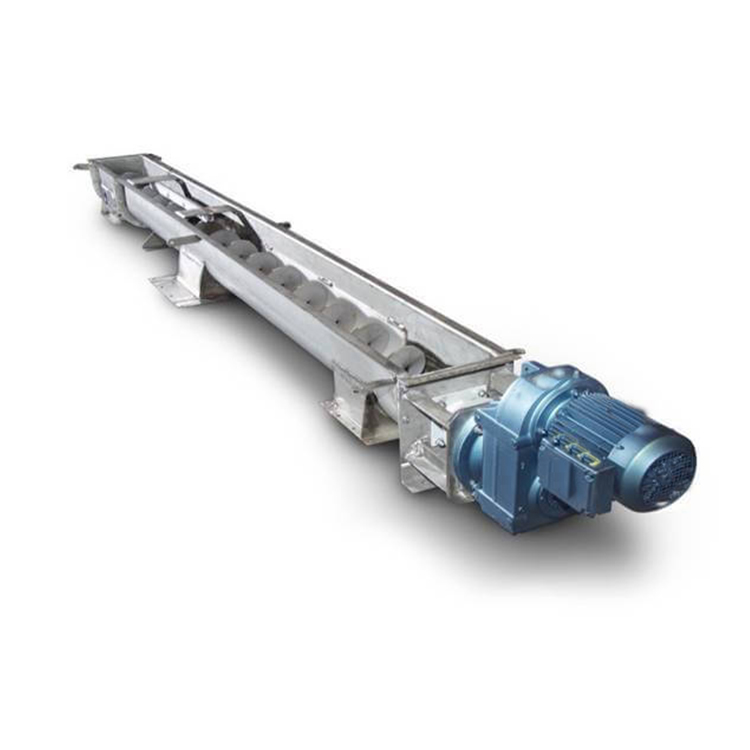

U-shaped screw conveyor is a U-shaped screw conveyor of screw conveyors. It adopts DIN15261-1986 standard and is designed and manufactured to meet the professional standards of JB/T7679-2008 “Screw Conveyor”. U-shaped screw conveyor is also called screw feeder, U-shaped screw conveyor, trough screw conveyor, screw conveyor, auger, etc. It adopts DIN15261-1986 standard and is designed and manufactured in accordance with JB/T7679-2008 “Screw conveyor” Professional standards

Product advantages of U screw conveyor:

1. Installation and disassembly do not need axial movement, long mandrel, less hanging, and fewer failure points

2. Adopt a variable diameter structure to increase the volume of the hanging bearing

3. Within the range, it can freely rotate with the conveying resistance to avoid material jams or blockages

4. The head and tail bearing seats are all outside the shell, with long service life

5. Good sealing performance, stable and reliable operation, multi-point loading and unloading and operation in the middle.
