Best Price for Aspiration System For Dust - Baghouse Bag Filter Industrial Dust Collector – Xintian Detail:

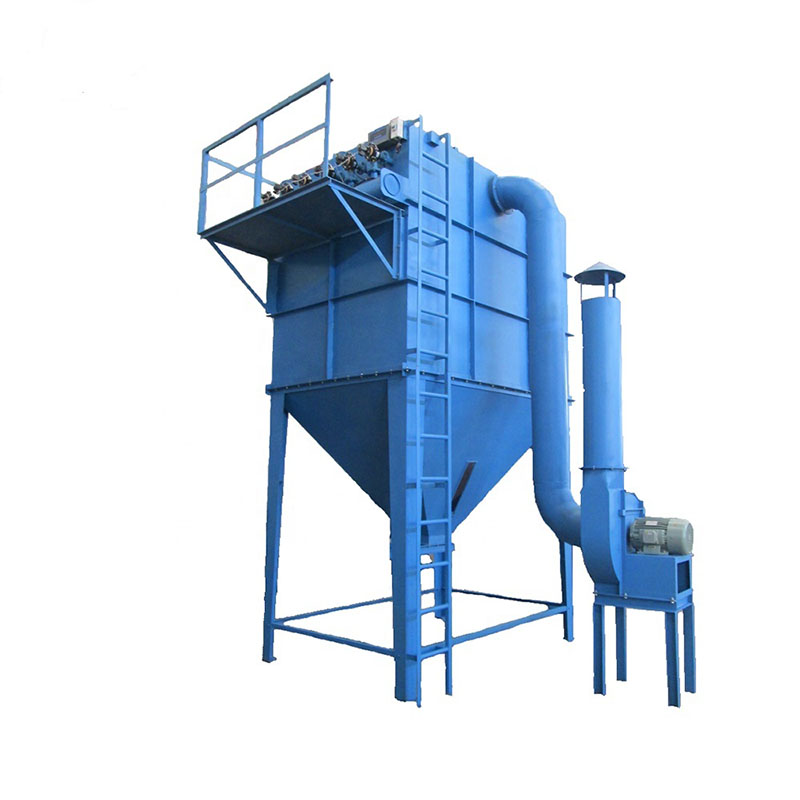

Baghouse Bag Filter Industrial Dust Collector
Product Description
HMC series pulse cloth bag dust collector is a single type baghouse dust collector. It adopts circular filter bag, self-contained air ventilation system with pulse injection ash cleaning mode, which has advantages of high dust removal efficiency, good ash cleaning effect, low operation resistance, long service life of filter bag, simple maintenance and stable operation, etc.
Operating Principle
When the dust gas enters into the cloth baghouse dust collector from air induced system, due to the decrease of wind speed, the dust particles with a large proportion settle into the ash hopper, and the lighter dust depends on the air induction to reach the surface of dust removal filter bag.
The filter bag of dust collector generally uses needle felt as the filter carrier, and the filtration accuracy can reach <1um. The dust is blocked on the surface by the filter bag, and the dust gas is purified through the filter bag. With the increasing of time, more and more dust is filtered on the surface of filter bag, so the resistance of the filter bag is gradually increased. In order to make the dust collector work normally, when the resistance rises to a limited range, the electronic pulse controller issues instructions to follow the order.Baghouse Bag Filter Industrial Dust Collector
The sequence triggers each control valve to open the pulse valve, and the compressed air in the gas storage bag of dust collector is sprayed into the corresponding filter bag by each injection hole of the injection pipe. The filter bag expands rapidly under the instantaneous reverse action of air flow, which makes the dust attached to the surface of the filter bag fall off and makes the filter bag achieve the most original air permeability filtration effect. The cleared dust falls into the ash hopper and drains out of the body through the ash removal system to complete the whole ash cleaning and filtration process.
Technical Parameters of Equipment Selection:
Packaging and shipping
Product detail pictures:
Related Product Guide:
Our solutions are widely regarded and trustworthy by consumers and may meet continually modifying financial and social requirements for Best Price for Aspiration System For Dust - Baghouse Bag Filter Industrial Dust Collector – Xintian , The product will supply to all over the world, such as: Greece, Belgium, Netherlands, Item have passed by means of the national qualified certification and been well received in our main industry. Our expert engineering team will often be ready to serve you for consultation and feedback. We have been able to also deliver you with cost-free samples to meet your specs. Ideal efforts will probably be produced to deliver you the most beneficial service and solutions. Should really you be interested in our company and solutions, please make contact with us by sending us emails or call us straight away. To be able to know our solutions and enterprise. ar more, you'll be able to come to our factory to see it. We will constantly welcome guests from all over the world to our firm. o build business enterprise. elations with us. You should feel absolutely free to speak to us for organization. nd we believe we are going to share the best trading practical experience with all our merchants.
